Nock Fish Skinning Cortex CBF 496 Salmon

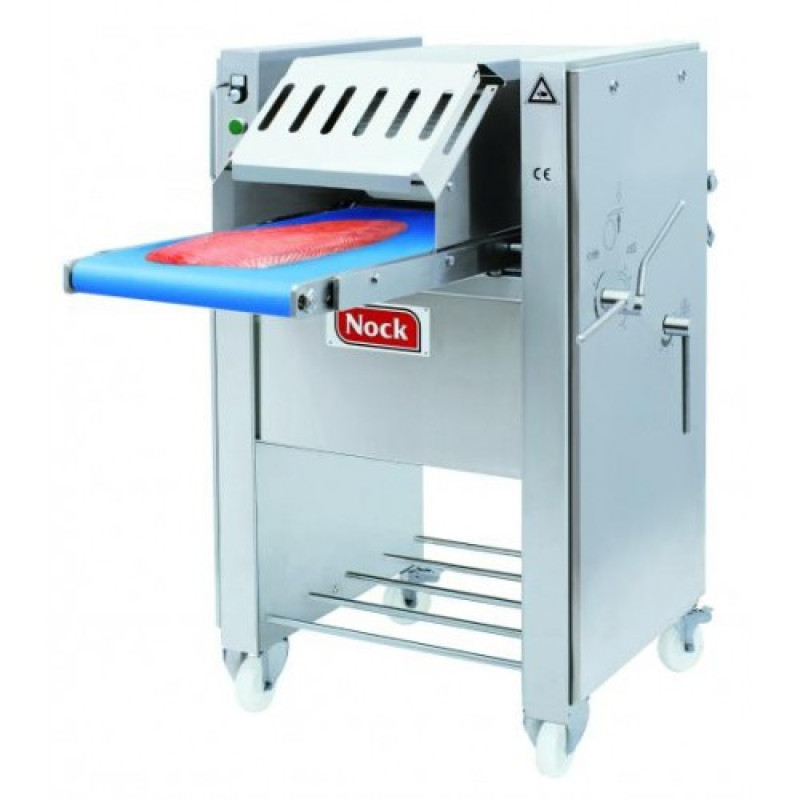

Nock Cortex CBF 496 Automatic Salmon Skinning Machine

The premium German-engineered Nock Fish Skinning Cortex CBF 496 Salmon system represents an elite automated processing milestone, custom-optimized exclusively to yield flawless recoveries on both delicate fresh fillets and ultra-dense smoked sides. If your fish packing commissary, smokehouse facility, or commercial plant floor is source-matching an ultra-reliable industrial fish skinner, looking to acquire a new conveyorized skinning machine, or deploying a high-yield inline automatic fish skinner to eliminate yield losses, this dedicated Cortex CBF 496 Salmon model delivers unmatched line advantages. Outfitted with the patented NOCK ACTIVE SKIN GRIPPER (AGS) technology and robust CF groove mechanics, it ensures positive skin-gripping along the entire fish body, maintaining perfect traction down to the absolute tip of the thin tail section without fracturing delicate raw muscle flakes or pulling away valuable underlying fat deposits.

• NOCK ACTIVE SKIN GRIPPER (AGS): Proprietary dynamic skin-clamping network that guarantees zero skin slippage or tail remnants when executing thin skin cuts with sharp blades.

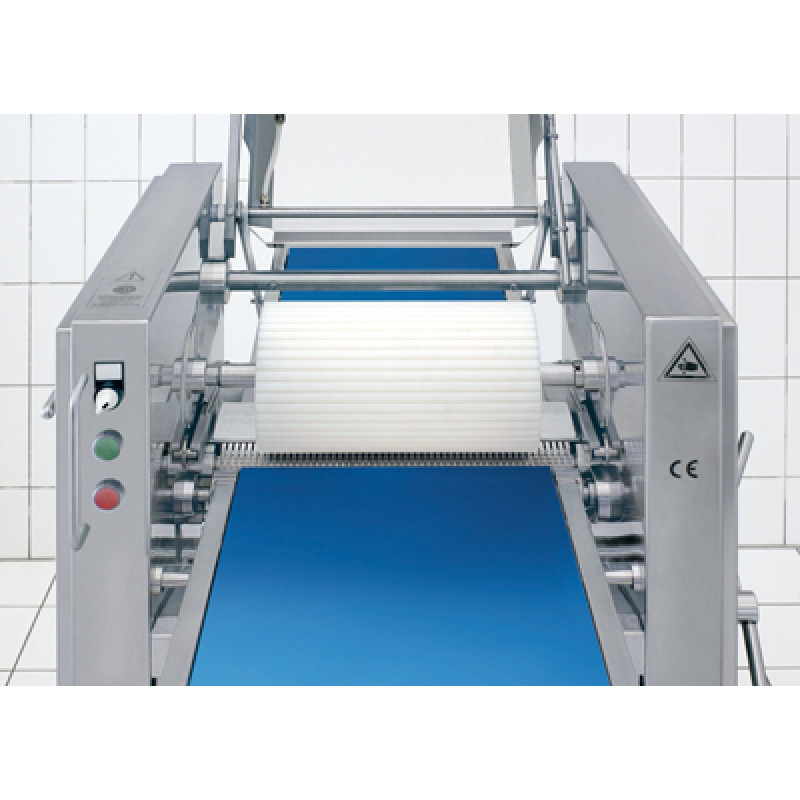

• Polyamide Hard Pressure Roller: Specialized hard-density roller applying concentrated downward pressure at the center of the passing fillet, fading slightly toward the outer margins to dramatically reduce trim loss during intense deep skinning.
• Pneumatic Lift Pressure Assembly: The primary upper pressure assembly features an infinitely height-adjustable framework with an automated integrated pneumatic release mechanism.
• Grooved AISI 316L Tooth Roller & Comb: Marine-grade AISI 316L stainless steel transport cylinder integrates high-precision grooves and an active scraper comb (CF technology) to optimize scale and tissue management.
• Steady-Flow Water Cleaning Unit: Built-in water wash manifold keeps the tooth roller constantly clear of surface slime and fine scales during raw fillet processing cycles to retain maximum cylinder traction.
• 15mm NOCK POWER PLATES®: Critical internal mechanical drive linkages are bolted directly onto solid 15 mm structural steel plates to ensure permanent precision and ultra-quiet shop floor operation.

• Pneumatic Inflated Pressure Balloon: Soft, air-filled counterweight balloon cylinder that tracks gently around salmon loins, avoiding tissue gaping or meat fiber damage on highly delicate fillets.
• Double Lane High-Volume Model: Upgrade to the heavy industrial **Cortex CBF 496/7 SALMON TWIN** framework to process twin processing lines simultaneously side-by-side.
• Adjustable Discharge Conveyor Extension: Enhancements to add custom positioning to the output conveyor line to facilitate seamless inline gathering of skins and finished fillets.

* Note: Main infeed and discharge conveyors detach from the machine frame within seconds without tools to accelerate washdown labor. The spring-loaded knife assembly completely removes hidden crevices, enabling easy cleanup loops and full compliance with strict regulatory food safety guidelines.
