Industrial equipment expertise you can rely on.

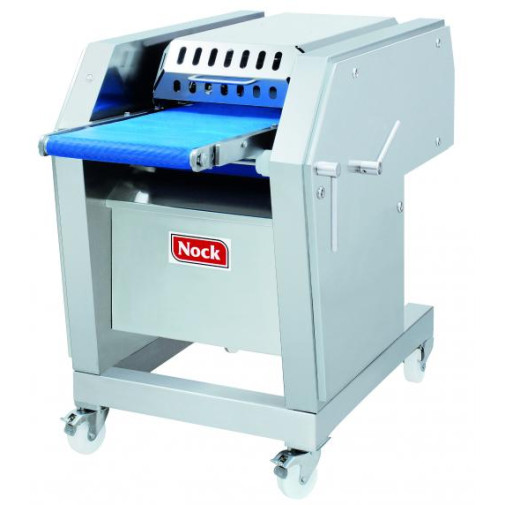

The German-engineered Nock Fish Skinning Skinex SBS 416 series represents a highly specialized milestone in automated seafood processing, custom-configured to master the complex demands of flatfish harvesting. If your commercial processing facility, wholesale fish packing plant, or distribution center is source-matching a high-capacity fish skinner, upgrading to an intelligent conveyorized skinning machine, or looking to deploy an elite automatic fish skinner in North America, the Skinex SBS 416 Canada platform delivers an elite operational advantage. Purpose-built explicitly for plaice fillets and other delicate flatfish variants, this machine skins both upper and lower fillets smoothly. Crucially, it integrates two dedicated mechanical trimming rollers to automatically remove the frills (fin fringes) during the skinning pass. Utilizing NOCK's signature groove-free "S-Technology," it handles thin-skinned fillets flawlessly without substrate tearing, ensuring premium, clean-cut portions with an industry-leading yield recovery rate.
| Active Cutting Width Clearance | 230 mm Clear Skinning Track |
| Speed of Infeed Conveyor Line | 17 meters / minute Processing Flow |
| Maximum Throughput Clearance Height | 20 mm Max Product Height Clearance |
| Blade Gap Sizing Bounds | 0 to 0.5 mm Ultra-Precision Infinitely Adjustable Matrix |
| Integrated Conveyor Loading Length | 550 mm Apply Zone Sizing |
| Hygienic Water Grid Connection | G ½" Internal Pipe Thread Fitting |
| Main Motor Drive Performance | 1.5 kW High-Torque Industrial Power Engine |
| Electrical Connection Grid Target | 3 AC • 400 V • 50 Hz • 3-Phase Standard (Other voltage setups available) |
| Physical Equipment Size (W × H × D) | 750 × 1060 × 1420 mm |
| Equipment Structural Net Weight | 280 kg (~617.3 lbs.) Robust, High-Stability Footprint |
* Note: Manufactured completely from premium food-grade stainless steel with watertight bearings and lockable steering castors. The NOCK EASY-FLOW® safety cover maximizes internal product flow paths while maintaining absolute compliance with demanding regulatory food safety codes.
