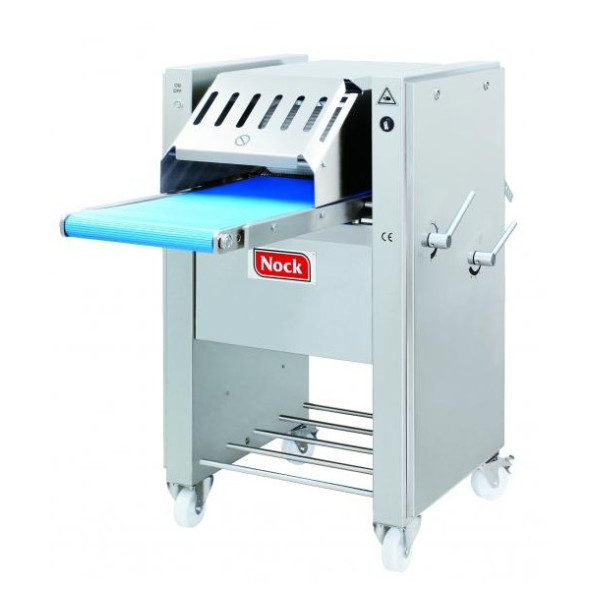

Nock Cortex CBF 496 Automatic Fish Skinning Machine

Specifications:

• Tooth roller (AISI 316L) with grooves and scraper comb (CF technology)
• Water cleaning unit for steady continuous operation
• Blade gap infinitely adjustable
• Spring suspended blade holder for perfect skinning results
• Special hard pressure roller for fish
• Infeed conveyor and discharge conveyor; can be taken out of the machine within seconds without any tools
• NOCK POWER PLATES for machine construction, which is easy to clean, robust, and service friendly
• NOCK EASY-FLOW safety cover with pneumatic spring
• Lockable castors
• Stainless steel
• Stainless steel bearings

Features and application range:

• Special application for fish with thick skin, e.g., salmon trout, flat fish like plaice, sole, dorado, etc.
• Suitable to skin fish with thin skin
• Skins fish fillets or one side of flat fish

• 3 methods of skinning:

1. Deep skinning with sharp blade
2. Thin skinning (shallow skinning) with sharp blade
3. Pulling-off the skin with blunt blade (silver skinning)

Technical Data:

• with infeed conveyor (850x425 mm)
• with discharge conveyor (850x425 mm)
• cutting width: 430 mm
• cutting speed: 24 m/min
• maximum throughout height: 70mm
• blade gap: 0-5 infinitely adjustable
• length on infeed conveyor: 400mm
• discharge conveyor for removed skin (650x450mm)
• overall dimension (WxDxH): 800x1190x1860
• weight: 250kg
• motor performance: 0.75kW
• water connection: G ¼ internal thread
• water consumption: approx.200 l/h

Optional:

• Inflated pressure balloon
• Discharge conveyor for removed skin
• Transport roller with coarse or fine toothing
• Turn around device for the automatic skinning of both sides of flat fish with 2 machines
• Foot switch
