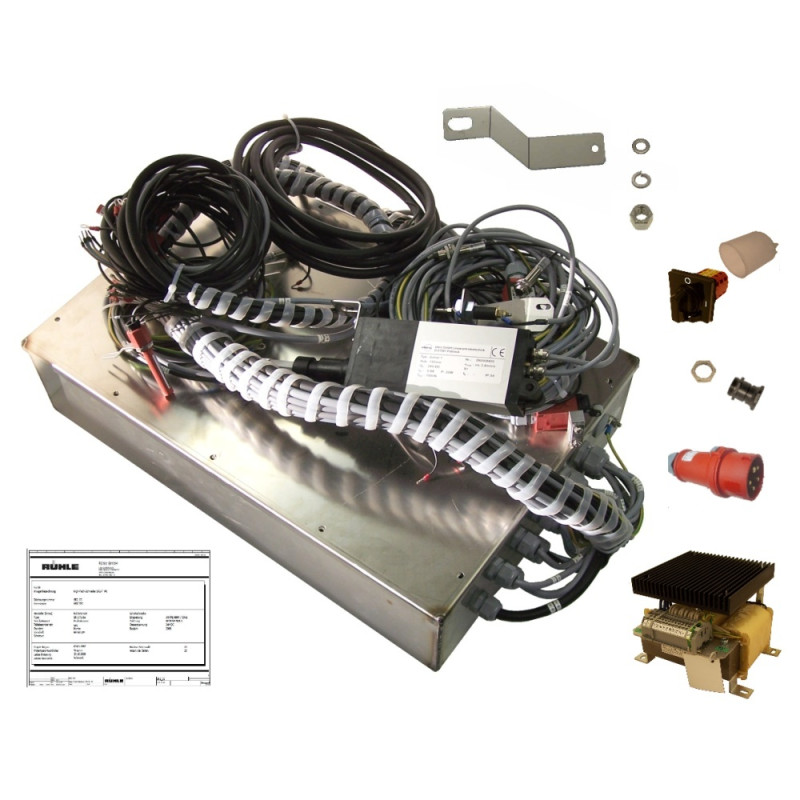

Switch Box Assembly - SR2 Turbo No. 74 and higher

Type: 103772et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 767

Note: Shipping to be Determined.

* Switch Box SR2-Turbo No. 74 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Assembly - SR2 Turbo No. 74 and higher

Type: 103772et
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 767

Note: Shipping to be Determined.

* Switch Box SR2-Turbo No. 74 and higher:
--F453871 Switch box
--F21441 Profile
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--106168 Circuit diagram
--F29063 Main switch
--F242947 Cable gland
-- F29060 Hexagonal nut
--F26441 CEE socket
--F27068 Power supply 400VAC/24VDC

Pos. No.	Part No.	Description	Add. Info	Required
1	F453871	Switch box	SR 2 Turbo	1
2	F21441	Profile	136,4 x 52,5 x 45 x 2,5	1
3	F20258	Washer	DIN125 A 6,4	1
4	F24031	Spring lock washer	DIN127 B 6	1
5	F20203	Hexagonal nut	DIN934 M 6	1
6	106168	Circuit diagram	SR 2 T	1
7	F29063	Main switch	V2N-01/HS-HF25H-BEH-SS	1
8	F242947	Cable gland	M 25 x 1.5 / brass	1
9	F29060	Hexagonal nut	M 25 x 1,5	1
10	F26441	CEE socket	16A-6h 5-pin 400V	1
11	F27068	Power supply 400VAC/24VDC	DNL 25	1
