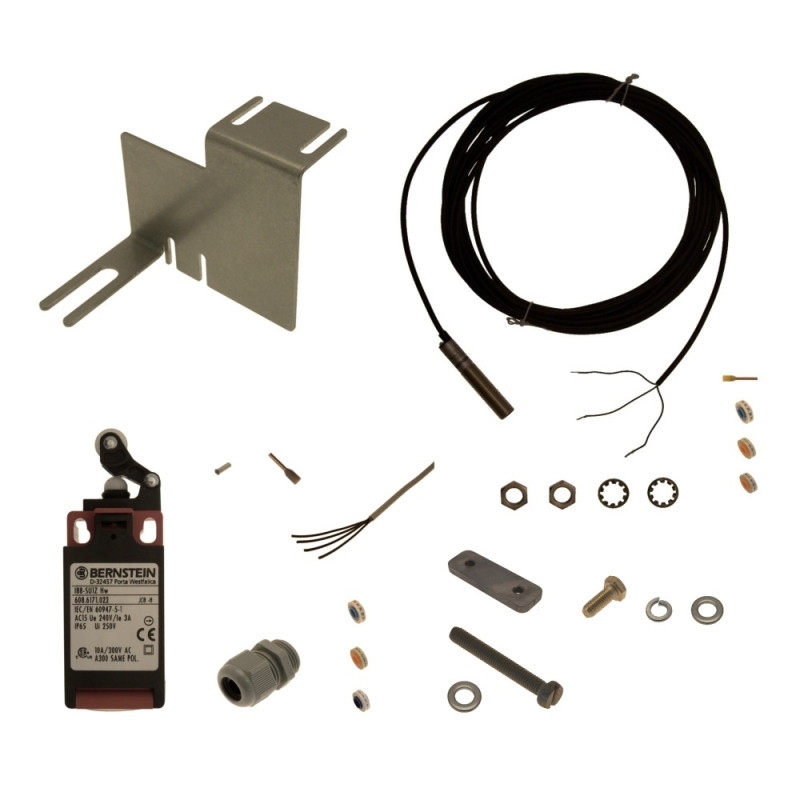

Sensor Unit Exploded View 4

Pos. No. Part No. Description Add. Info Required ... Read More

Stock: Pre-Order
Brand: Ruhle
Type: 103804

Available Options

Sensor Unit Exploded View SR2 Turbo No. 74 and higher 4

Qty

Request Quote

From Same Category
Same Brand

Quickview

Cable Power Supply Exploded View

View Details Request Quotes

Quickview

Lid Exploded View - SR2 Turbo No. 74 and higher

View Details Request Quotes

Quickview

Linear Actuator Exploded View

View Details Request Quotes

Quickview

Mounting Plate Exploded View

View Details Request Quotes

Quickview

Sensor Unit Exploded View

View Details Request Quotes

Quickview

Sensor Unit Exploded View 2

View Details Request Quotes

Quickview

Sensor Unit Exploded View 3

View Details Request Quotes

Quickview

Switch Box Assembly - SR2 Turbo No. 74 and higher

View Details Request Quotes

Description
Specifications

Pos. No.	Part No.	Description	Add. Info	Required
1	F26513	Bracket	114,5 x 113,5 x 97 x 2,5	1
2	F20569	Cylinder head screw	DIN84 M 4 x 30	2
3	F20570	U-Scheibe	DIN125 A 4,3	2
4	F26346	Plate / Sheet	36 x 12 x 4	1
5	F20417	Hexagonal bolt	DIN933 M 6 x 16	2
6	F24031	Spring lock washer	DIN127 B 6	2
7	F20258	Washer	DIN125 A 6,4	2
8	F29058	Cable gland	M 20 x 1.5	1
9	F28791	Cable	ÖZ-O 4x0.75 mm²	3650
10	F20737	Limit switch	I88-SU1Z Hw	1
11	F27081	Initiator	KIN-M12PS/004 KL6	1
