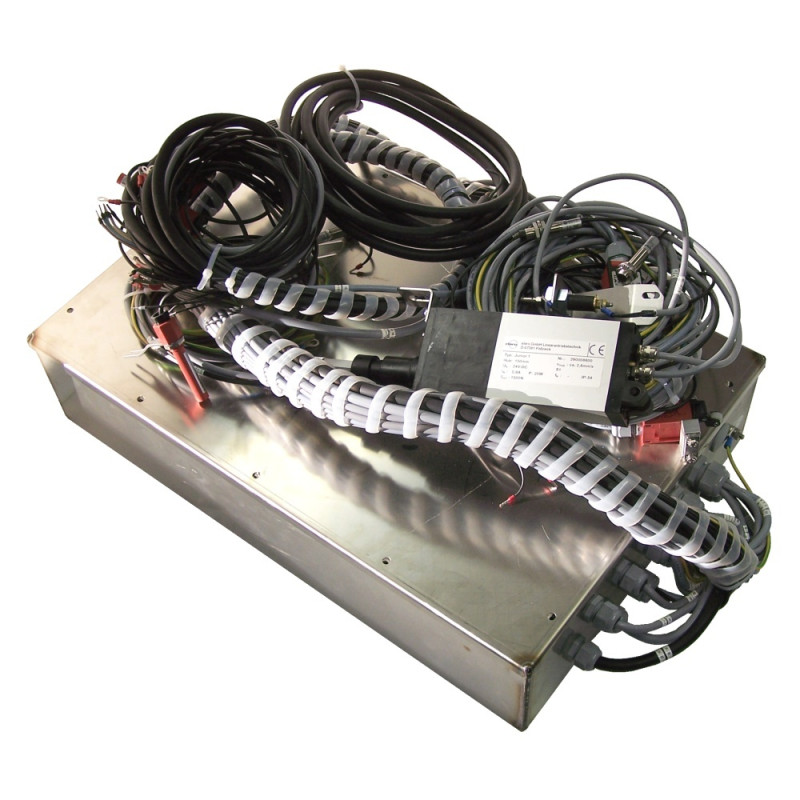

Switch Box Complete SR2 Turbo No. 74 and higher
Type: F453871
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 768
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 768
Note: Shipping to be Determined.
 |
Pos. No.  |
Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|---|
 |
 |
1 | 103771 | Lid | SR 2 Turbo | 1 |
 |
2 | 103357 | Housing | SR 2 Turbo | 1 | |
|
 |
3 | F41492 | Mounting plate | SR 2 Turbo | 1 |
 |
4 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 3 | |
 |
5 | F24031 | Spring lock washer | DIN127 B 6 | 7 | |
 |
6 | F20203 | Hexagonal nut | DIN934 M 6 | 7 | |
 |
7 | F148541 | Sticker | BMK02 | 4 | |
 |
8 | F144363 | Spiral hose | SP161 9 mm PE TR 25M ME | 4 | |
 |
9 | F28732 | lock washer | DIN6797-A ø 6,4 | 4 | |
 |
10 | F20258 | Washer | DIN125 A 6,4 | 4 | |
 |
11 | F29058 | Cable gland | M 20 x 1.5 | 2 | |
 |
12 | F25780 | Hexagonal nut | M 20 x 1,5 | 2 | |
 |
13 | F29057 | Cable gland | M 25 x 1.5 | 8 | |
 |
14 | F26132 | Sealing ring | M 25 / 4 x 6 mm | 7 | |
 |
15 | F29060 | Hexagonal nut | M 25 x 1,5 | 9 | |
 |
16 | F249013 | Plug-in connector SUB D, TM | 9 poles SUB D | 1 | |
 |
17 | F249129 | Hood metal. | 9 poles SUB D | 1 | |
 |
18 | 103265 | Cable PC Mikroline | SR 2 T | 1 | |
|
 |
19 | 101816et | Cable power supply | SR 2 T | 1 |
 |
20 | 102284 | Cable power supply main switch | SR 2 T | 1 | |
 |
21 | 102283 | Cable for main drive | SR 2 T | 1 | |
 |
22 | 102285 | Cable for conveyor belt drive | SR 2 T | 1 | |
 |
23 | 102286 | Cable for lifting unit | SR 2 T | 1 | |
 |
24 | 102287 | Cable power supply | SR 2 T | 1 | |
 |
25 | 102288 | Cable for rectifier main drive | SR 2 T | 1 | |
|
 |
26 | 103807 | Sensor unit | SR 2 T | 1 |
|
 |
27 | 103802 | Sensor unit | SR 2 T | 1 |
 |
28 | 102289 | Cable for power supply unit G4 | SR 2 T | 1 | |
 |
29 | 102298 | Cable DC motor pre-compression | SR 2 T | 1 | |
 |
30 | 102290 | Cable rectifier lifting unit | SR 2 T | 1 | |
 |
31 | 102299 | Cable electric motor coupling | SR 2 T | 1 | |
|
 |
32 | 103809 | Sensor unit | SR 2 T | 1 |
 |
33 | 102291 | Cable key "Lifting unit up" | SR 2 T | 1 | |
 |
34 | 102292 | Cable limit switch rope S17 | SR 2 T | 1 | |
 |
35 | 102293 | Cable for EMERGENCY STOP | SR 2 T | 1 | |
 |
36 | 102294 | Cable for PC power supply | SR 2 T | 1 | |
 |
37 | F21602 | Solenoid switch | MAK 2626-4 | 4 | |
 |
38 | F27081 | Initiator | KIN-M12PS/004 KL6 | 4 | |
 |
39 | F27082 | proximity switch | KIB-M12 PÖ/002 KL6 | 1 | |
|
 |
40 | 103804 | Sensor unit | SR 2 T | 1 |
|
 |
41 | 103795 | Linear actuator | SR 2 Turbo | 1 |
 |
42 | 104489 | ground wire | SR 2 T | 1 | |
 |
43 | 103789 | ground wire | SR 2 T | 1 | |
 |
44 | 105175 | ground wire | SR 2 T | 1 | |
 |
45 | 105177 | ground wire | SR 2 T | 1 |
