Nock Combo Derinding & Skinning Vliesex CV 460

Type: cutting width: 430 mm
Country of Origin: Germany
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 6424
Financing Available
Note: Shipping to be determined
Options for Nock Vliesex CV 640:

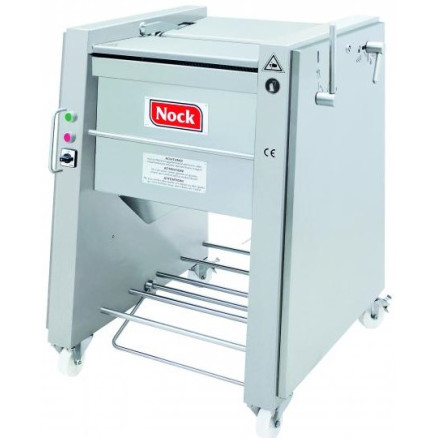

Nock Vliesex CV 460 Combination Machine for Derinding and Skinning

Open top combination machine for derinding round products and for membrane skinning with dynamic cleaning roller and compressed air cleaning system

Features and application range:

  • Cutting width: 430 mm
  • Cutting speed: 17/32 m/min
  • Combination machine as open top model with vast application possibilities
  • Derinding of round products such as pork and ham
  • Membrane skinning of pork, beef, venison, ostrich, poultry, etc.

Standard Equipment:

  • Transport roller without circumferential grooves and spring-suspended blade holder
  • Two-speed motor
  • Dynamic (counter-rotating) cleaning roller made of stainless steel and the NOCK Air-Jet compressed air cleaning sytem to keep the transport roller constantly clean during operation
  • Blade holder with captive screws
  • Ergonomically favourable trapeze-shaped casing for maximum stability when transporting the machine over uneven surfaces
  • Ergonomically favourable safety foot switch bar, adjustable in height
  • 15 mm thick NOCK POWER PLATES installed in the machine casing provide constant precision and service friendliness
  • Safety switch for processing table
  • Lockable castors
  • Stainless steel

Options:

  • NOCK IMMEDIATE CUT-OUT (ICO) safety system - This stops the machine when touching the blade and transport roller with electrically conductive gloves.

Technical Data:

blade gap 0 - 4.5 mm
overall dimension W x H x D 750 x 970 x 700 mm
weight 150 kg
motor performance 0.55 / 0.88 kW
compressed air connection 5 < p <10 bar
compressed air requirement

ca. 250 l/min (ambient pressure)

electrical connection

3 AC - 400 V - 50 Hz

other voltages upon request
