Description

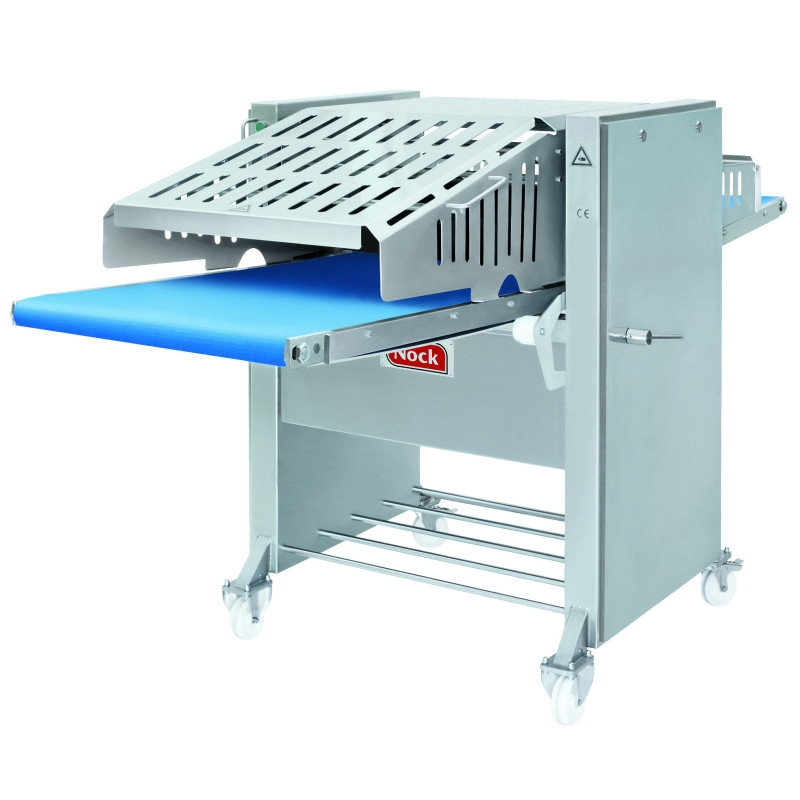

Nock Cortex CB 495/7K Slicer Circular Blade Cutting Machine

The high-output Nock Cortex CB 495/7K Slicer is an expansive, industrial-grade circular cutting machine engineered specifically for high-volume factories requiring seamless, multi-lane feeding into active production lines. If you are aiming to deploy a reliable industrial circular meat sIicer in Ontario Canada or upgrading your floor with a heavy-duty commercial butcher cutter near me, this extra-wide system delivers immense processing capacity without compromising portion appearance. Built to the premier engineering standards of all Nock cutting machines in Ontario Canada, the Cortex CB 495/7K boasts a generous 600 mm operating width. Its ultra-sharp circular knives cut precisely into an underlying counter-roller, making it an incredibly economical option for uniform high-speed strip and slice production.

Optimized Product Slicing Scope

The ultimate volume system for processing massive quantities of fresh, boneless product lines into uniform slices or thin strips in incredibly short intervals. Fully optimized for high-speed automated tracks handling:

Beef scallops, quick steaks, pork loin scallops, and thin pork belly strips.
Fresh poultry breasts, strips, nuggets, whole fish, or scaled fish fillets.
Industrial offal processing lines.
Pre-cut diced material blocks configured perfectly for background cutters or industrial mincers.

Key Features & Mechanical Advantages

Flexible Grid Adaptability: Slicing blade distance arrays can be adjusted or manually swapped out across multiple standardized steps.
Tight Cutting Tolerance: Achieves clean dimensional portion tracking down to a technical minimum blade distance of 6 mm depending on product density.
Multi-Lane Feeding Compatibility: The wide 600 mm conveyor layout is perfectly optimized to receive split batches or multi-lane raw product tracking simultaneously.
NOCK Easy-Flow Safety Cover: Streamlined protective shielding cover incorporates automated pneumatic springs to maximize safety parameters and prevent debris accumulation.
15mm NOCK Power Plates: High-rigidity internal mechanical structural plates provide outstanding chassis robustness, continuous mechanical alignment, and smooth, easy-to-clean surfaces.

Available Modular Options & Upgrades

Multi-Zone Blade Distance: Ability to configure multiple different cutting widths simultaneously on a single shared blade shaft.
Middle partition divider module attached to the infeed conveyor for dual-lane segregation.
Adjustable lateral guiding rails integrated directly onto the infeed conveyor track for raw item stabilization.
Mobile technical cleaning wagon built to safely clean, sanitize, and store up to 2 independent blade shafts.
Plastic modular intersection roller core fitted with a long-life scraper comb assembly (non-quick change style).
Heavy-duty structural transport and lockable storage box enclosure custom-fit for the blade shaft.
Extended conveyor tracking lengths paired with optional product scrapers on the discharge belt.
Ultra-Wide Special Slicer Version: Available upon special request in a massive 900 mm cutting width execution model (Nock CB 495/10K Slicer).

Technical Product Specifications

Supported Blade Diameters	200 mm / 300 mm Dual Compatibility
Max. Throughput Height Clearance	70 mm (With 200 mm blades) / 120 mm (With 300 mm blades)
Maximum Blade Equipment Space	590 mm
Conveyor Belt Track Width	635 mm
Max. Throughput Width Capacity	675 mm
Linear Conveyor Slicing Speed	18 meters per minute
Minimum Blade Distance Limit	6 mm (depending closely upon product characteristics)
Available Blade Distance Grids	6 - 7 - 8 - 9 - 10 - 11 mm
Overall Physical Dimensions (W x H x D)	1020 mm × 1300 mm × 2450 mm
Equipment Structural Weight	320 kg (approx. 705.4 lbs)
Motor Performance Rating	1.1 kW Heavy-Duty Slicing Drive
Electrical Network Connection	3 AC - 400 V - 50 Hz (Alternative global voltage configurations such as 220V, 480V, or 575V 60Hz provided upon custom factory order)

* Note: Main fabrication consists of premium food-grade stainless steel paired with a quick-release toolless conveyor belt dismantle path. This guarantees ultra-fast cleaning cycles, full operator blade-shield protection, and maximum compliance with plant safety guidelines.
