Nock Fish Skinning Skinex SB 496

Type: cutting width: 430mm
Country of Origin: Germany
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8120
Financing Available
Note: Shipping to be determined
* Power Option for Skinex SB 496:

Options for Skinex SB 496:

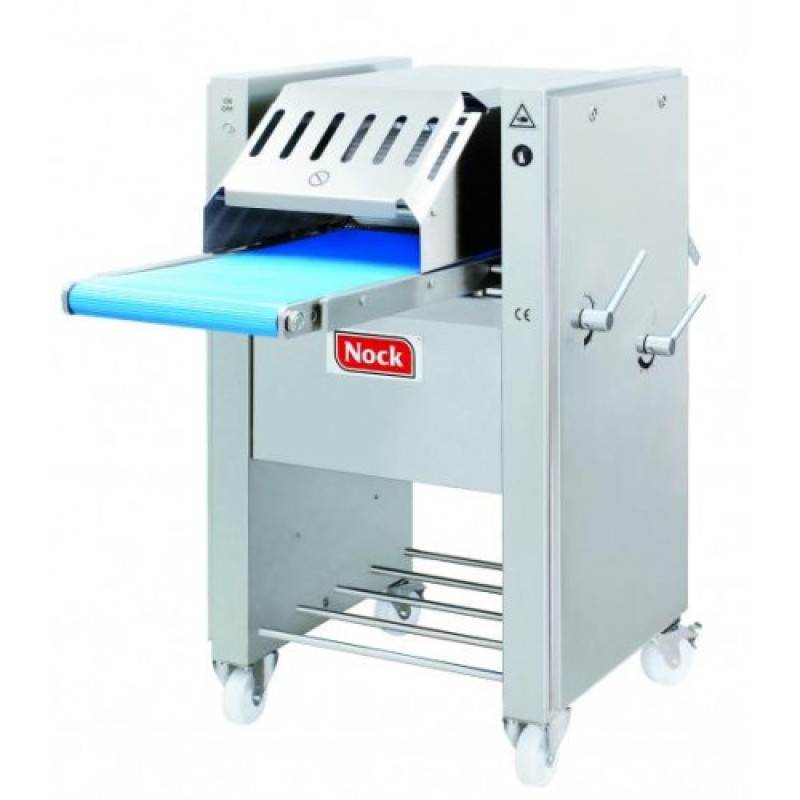

Nock Skinex SB 496 Automatic Fish Skinning Machine

Conveyorized fish skinning machine comes with a transport roller, dynamic cleaning roller, water cleaning unit for processing fresh fish, spring suspended pressure unit, and a hard pressure roller for fish. This machine also comes with S technology and a special application for low-loss skinning of fish.

Features:

3 methods of skinning:

  •  Deep skinning with a sharp blade
  •  Thin skinning (shallow skinning) with a sharp blade
  •  Pulling-off the skin with a blunt blade (silver skinning)

Application:

Conveyorized fish skinner with S technology and special application for low-loss skinning of fish with thin skin such as tilapia, pangasius (Basa), trout, cod, catfish, squid, etc.

Standard:

  • Transport roller (AISI 316L) without peripheral grooves but with a dynamic cleaning roller made of stainless steel (S technology)
  • Water cleaning unit for steady continuous operation
  • Blade gap infinitely adjustable
  • Spring suspended blade holder for perfect skinning results
  • Pressure roller spring, air filled balloon, or special hard pressure roller has adjustable balance weights depending on which product being used
  • Infeed conveyor and discharge conveyor; can be taken out of the machine within seconds and without any tools
  • NOCK POWER PLATES for the machine’s construction, which is easy to clean, robust, and service friendly
  • NOCK EASY-FLOW safety cover
  • Lockable castors
  • Stainless steel
  • Stainless steel bearings

Technical Specifications:

  • Cutting width: 430mm
  • Cutting speed: 24m/min
  • Maximum throughput height: 70mm
  • Blade gap: 0-4 mm infinitely adjustable
  • Apply length on infeed conveyor: 400mm
  • Infeed conveyor (1): 850x425mm
  • Discharge conveyor (1): 850x425mm
  • Overall dimension: 800x1190x1860mm (WxHxD)
  • Weight: 240kg
  • Motor performance: 0.75kW
  • Voltage: 400V 50Hz 3Ph (other voltage options available)
  • Water connection: G 1/2 internal thread
  • Water consumption: approx. 200l/h

Options:

  • Discharge conveyor for removed skin
  • Transport roller with coarse toothing
  • Foot switch and infeed table for “manual” operation with open top machine
  • Turn around device for the automatic skinning of both sides of flat fish with 2 machines
