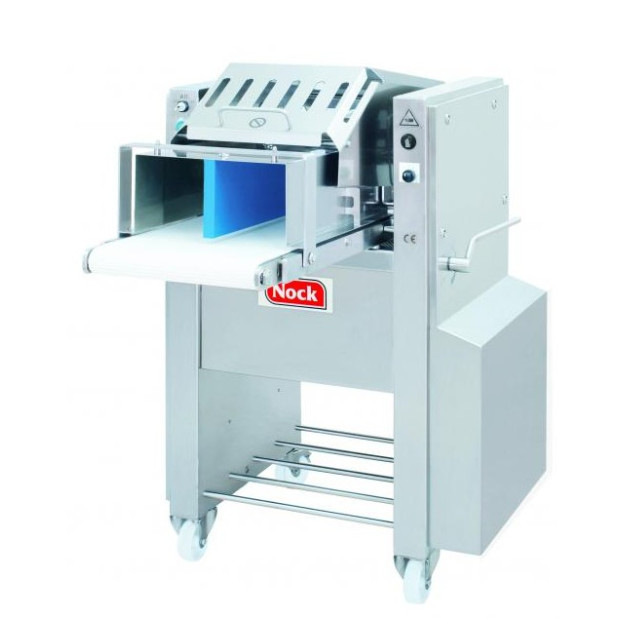

Nock Cortex CBP 496 Vario Poultry Skinning Machine

Conveyorized poultry skinning machine with two special pressure paddle rollers, dynamic cleaning roller and compressed air cleaning system. The pressure unit is infinitely adjustable in height and the automatic skinning machines are specifically for chicken corpuses.

Application:

•     CBP 496 VARIO offsets when processing chicken corpuses
•     Deployable with alternative pressure roller to skin chicken legs

Standard:

• 2 special pressure paddle rollers to skin corpuses
• Stepless height adjustable pressure unit with variable speed and adjustable counterweight
• Special chicken skinning blade
• Blade holder spring suspended
• Special transport roller for chicken skinning
• Infeed conveyor
• Discharge conveyor
• Dynamic stainless steel cleaning roller
• NOCK Air-Jet compressed air cleaning System
• NOCK POWER PLATES for special robustness and service-friendliness
• NOCK EASY-FLOW safety cover for reliable product flow and better processing hygiene
• Lockable castors
• Stainless steel
• Stainless steel bearings

Technical Specifications:

• Cutting width: 2x160mm
• Cutting speed: 24m/min
• Max. throughput height: 160mm
• Infeed conveyor (1): 1170x425mm
• Discharge conveyor (1): 850x425mm
• Discharge conveyor for removed skin (1): 650x425mm
• Overall dimension: 800x1250x2700mm (WxHxD)
• Weight: 265kg
• Motor performance: 0.75kW
• Voltage: 400V 50Hz 3Ph (other voltage options are available)
• Compressed air connection: 5<p<10 bar
• Compressed air consumption: approx. 250l/min (surrounding pressure)

Options:

• Pressure roller with star shaped pressure wheels to skin chicken legs
• Discharge conveyor for removed skin (850x590 mm)
• Plastic modular belts
