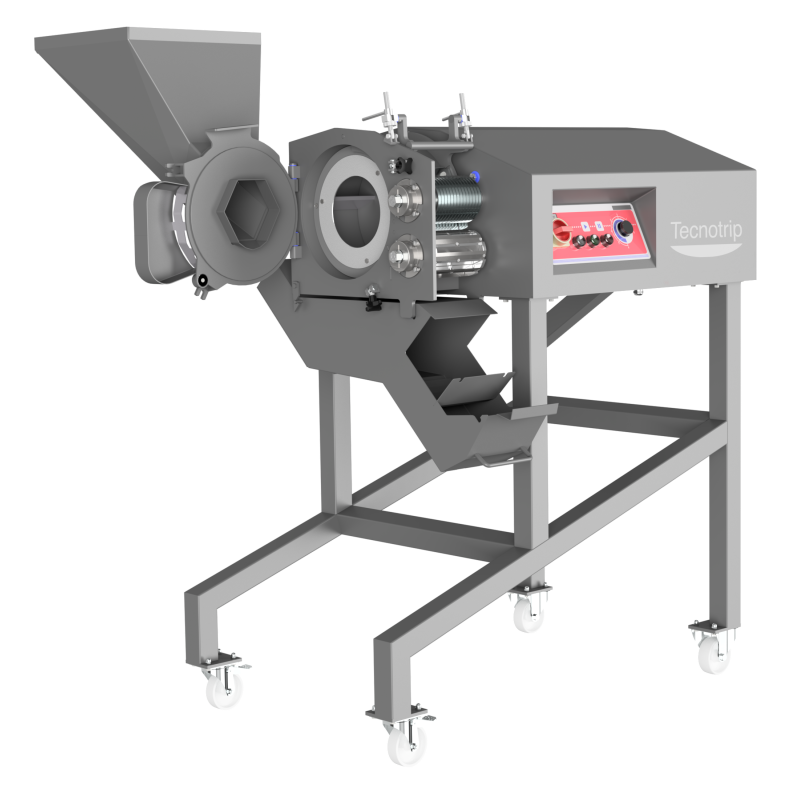

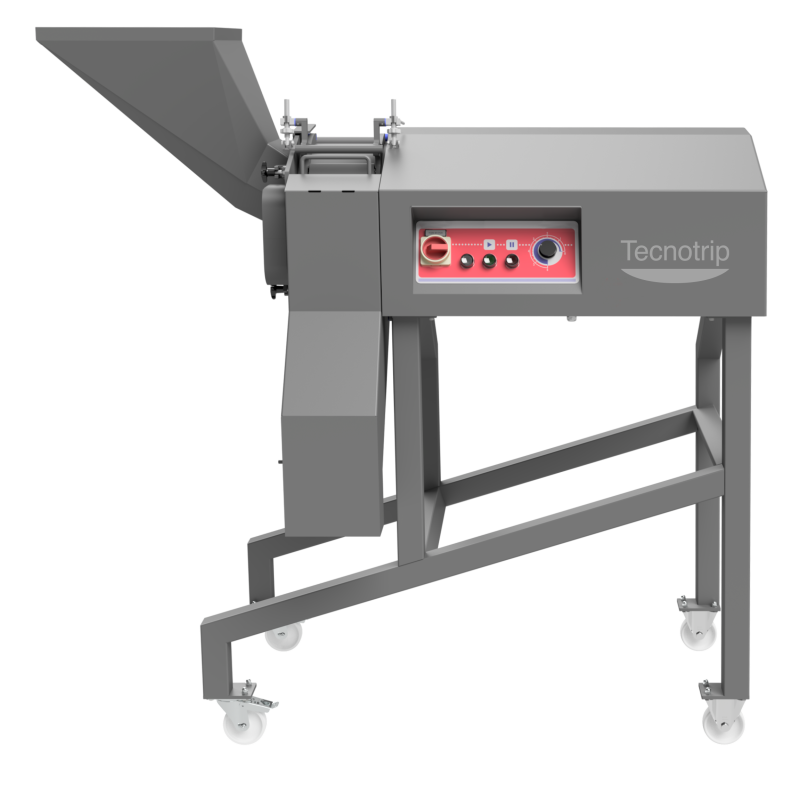

Tecnotrip Vegetable Dicer TDSH-140
The high-precision Tecnotrip Vegetable Dicer TDSH-140 is an elite processing system explicitly designed for cutting vegetables into certain sized pieces and to cut in the exact size that we need. Engineered as a premier choice among modern food lines, this advanced Tecnotrip vegetable and fruit dicer offers heavy-duty, clean portioning within a space-saving footprint. Built as a top-tier solution for operations demanding a robust Tecnotrip vegetable dicer TDSH-140 for industrial use, it acts as a reliable commercial vegetable and fruit dicer that handles both fresh produce and delicate semi-frozen ingredients. Choosing this innovative machine ensures clean slice cuts, uncompromised structural shape uniformity, and minimized operational waste across high-volume production lines.
- Space-Saving Compact Footprint: Highly optimized mechanical design intended to provide broad processing capacity while fitting easily into small spaces.
- Premium All-Stainless Steel Build: Fabricated from food-grade stainless steel to ensure continuous mechanical rigidity, superior wear resistance, and rapid washdown sanitizing.
- Generous Chamber Block Sizing: Large processing opening safely accepts material masses with a maximum block size of up to 407 x 407 mm.
- Flexible Temperature Adaptability: Perfectly processes fruits and vegetables in fresh conditions from +5°C to 25°C, while remaining fully suitable for processing soft fruits in semi-frozen conditions from -2°C to -4°C.
- Dynamic Cutting Set Geometry: Effortlessly cuts uniform strips, clean cubes, and precise slices in various commercial sizes depending entirely upon your selected interchangeable cutting set.
| Maximum Feed Block Size | 407 x 407 mm |
| Fresh Cut Temp Range | +5°C to +25°C (Fresh fruits and vegetables) |
| Semi-Frozen Temp Range | -2°C to -4°C (Optimized for soft fruit profiles) |
| Electrical Power Profile | 220V / 60Hz / 3Ph |
| Machine Weight / Frame | Heavy-Duty Stainless Steel Chassis |
| Machine Dimensions (L x W x H) | 1622 mm x 934 mm x 1670 mm |
■ Cube Cutting Setup: A complete synchronized set configuration built to deliver uniform cubes. For instance, a standard 10x10x10 mm block cube matrix layout consists of:
- Upper cutting drum assembly (10 mm variant equipped with high-grip circular knives)
- Lower calibrated cutting drum assembly (10 mm variant)
- Premium block slicing knife component (10 mm variant)
- Sanitary scraping comb component (10 mm variant)
■ Strip Cutting Setup: When processing uniform product strips, the lower cutting drum is removed from the material pathway. Instead, a specialized guide deflector is introduced. For example, a 3 mm strip cutting kit contains:
- Upper cutting drum assembly (3 mm variant)
- Premium block slicing knife component (3 mm variant)
- Sanitary scraping comb component (3 mm variant)
- Specialized product deflector guide built explicitly for strip tracking
■ Slices Cutting Setup: To run clean slice portions, the upper cutting drum, lower cutting drum, and scraping combs are completely bypassed. Instead, only a block knife and guide are required (knife size parameters do not affect thickness):
- Premium block slicing knife component (Any baseline sizing profile)
- Specialized slice-guide deflector module used to funnel the sliced product cleanly out of the zone
* Note: The professional Tecnotrip TDSH-140 commercial series features heavy-duty, lockable toolless casting guides that allow lines to safely convert tool grid arrays within minutes, establishing it as the best vegetable dicer in Canada for sale.
