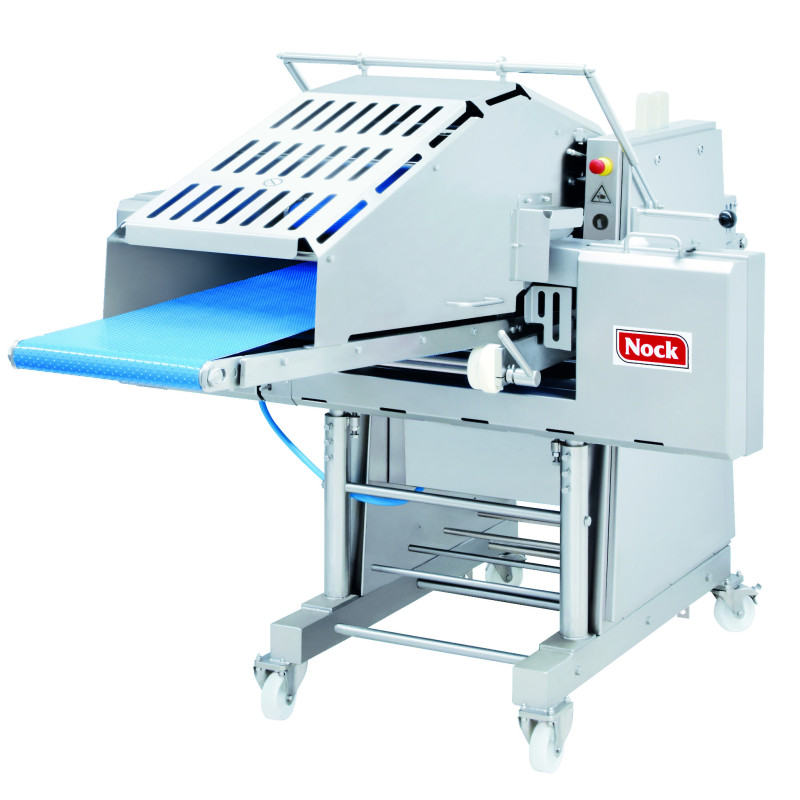

The elite Nock Cortex CB 435/4E HVC Horizontal Vertical Circular Blade Cutting Machine represents a massive breakthrough in multi-dimensional portioning technology, combining a precision horizontal band blade and a heavy-duty vertical circular blade module within a single process. If you are tracking down an ultra-efficient circular slicer for meat near me or aiming to implement the absolute best Nock cutting machine configuration for multi-axis processing, this hybrid horizontal vertical cutter delivers ultimate structural precision. Masterfully optimized as an industrial commercial meat cutter, the Cortex CB 435/4E HVC in Ontario Canada slices skin-on or delicate whole-muscle proteins cleanly without compression or fiber deformation. This high-throughput circular cutting machine provides modern food plants with unmatched portion aesthetics, immense processing versatility, and rapid daily batch turnover rates.
Engineered explicitly to support three distinct processing routines on a single platform: executing a simultaneous single horizontal cut plus multiple vertical cuts, running a horizontal-only butterfly slice, or conducting a vertical-only strip cutting operation. This infrastructure makes it perfectly optimized for processing:
| Circular Blade Diameter | 200 mm |
| Horizontal Band Blade Width | 380 mm Max. Operational Width |
| Vertical Circular Blade Grid Width | 300 mm Max. Operational Stocking Space |
| Max. Throughput Height Clearance | 70 mm |
| Max. Throughput Width Capacity | 410 mm (Conveyor Belt Width: 370 mm) |
| Linear Conveyor Slicing Speed | 25 meters per minute |
| Minimum Circular Blade Distance | 6 mm (Technical baseline limit depending on product density) |
| Available Grid Spacing Variations | 6 - 7 - 8 - 9 - 10 - 11 mm |
| Overall Physical Dimensions (W x H x D) | 1520 mm × 1530 mm × 2420 mm |
| Equipment Structural Weight | 385 kg (approx. 848.7 lbs) configured with standard 8 mm spacing loaded |
| Motor Performance Power | 1.3 kW High-Efficiency Total Output (0.75 kW + 0.55 kW Dual Slicing Engine) |
| Electrical Network Connection | 3 AC - 400 V - 50 Hz (Alternative global voltage configurations such as 220V, 480V, or 575V 60Hz provided upon custom factory order) |
* Note: Fabricated entirely from clean, food-grade stainless steel with specialized bearings and lockable heavy-duty swiveling castors. The rigid internal mechanics allow for swift sanitation washdowns while protecting structural blade alignment under continuous commercial processing shifts.
