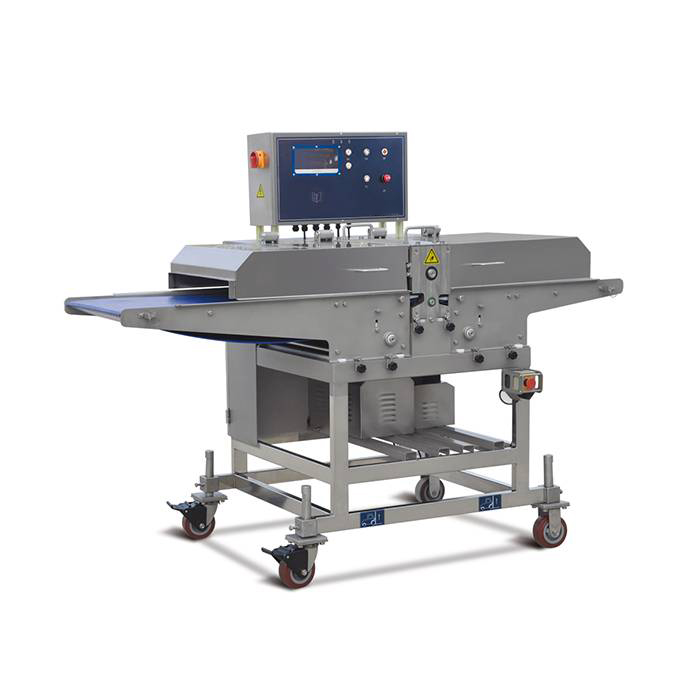

Food Strip Cutting Machine
The high-output Food Strip Cutting Machine is an advanced commercial processing system engineered for precision fresh meat stripping and dicing utilizing a heavy-duty circular blade arrangement. If you are searching for a high-efficiency meat cutting and striping machine near me, this inline workhorse delivers outstanding structural uniformity across fresh beef, pork, and poultry lines. Highly adaptable as a dedicated bacon cutting machine or a high-capacity bacon strips cutting machine in Ontario Canada, this versatile industrial cutting machine and dicing machine handles intensive production loads. The multi-blade layout cuts fresh product cleanly without tearing raw fibers, making this strip cutting machine an indispensable asset for large-scale butchers, jerky manufacturers, and commercial packaging facilities.
- Fresh Meat Processing: Specifically optimized to cut fresh meat cuts cleanly; not designed for cooked product lines.
- High Cutting Precision: Achieves tight, highly uniform dimensional portion tracking down to a minimum cutting thickness width of 5 mm.
- Multi-Blade Combinations: Provides maximum floor efficiency via a multi-blade carrier system that can combine different thickness spacing arrays into a single pass.
- Floating Unloading Plates: Outfitted with an anti-stick floating discharge mechanism that prevents soft meat cuts from clinging to or binding between the circular blades.
- Variable Speed Conveying: Extended variable-speed modular transport belt reaches velocities up to 18 m/min to guarantee a massive production capacity.
- Toolless Cleaning Breakdown: Fabricated with a completely detachable blade carrier sleeve, along with quick-release input and output transport belts for rapid, easy sanitation cycles.
- Hygienic Mist Spraying Layout: Features built-in mist spray nozzles that lubricate the circular blades continuously for smooth slicing execution.
- Premium Electronics & Hardware: Adopts long-life imported module transport belts paired with high-grade, CE-approved SIEMENS safety components.
- Strict HACCP Compliance: Engineered from food-grade stainless steel and robust engineering plastics to provide smooth surfaces that eliminate raw ingredient traps.
| Production Capacity Range | 200 - 800 kg/h (Depending on material thickness) |
| Conveyor Belt Width | 500 mm |
| Conveyor Tracking Speed | 3 ~ 18 m/min (Fully Variable Control) |
| Maximum Product Entry Width | 400 mm |
| Cutting Thickness Range | Min: 5 mm / Max: 45 mm |
| Logistics Working Height | Input/Output: 1050 ± 50 mm |
| Power Consumption Load | 1.9 kW |
| Machine Dimensions (L x W x H) | 2100 mm × 1060 mm × 1755 mm |
* Note: Target cutting blade gap profiles can be customized precisely according to specific client production requirements. Change target widths instantly by deploying alternative blade sleeves or spare carrier bars.
