Industrial equipment expertise you can rely on.

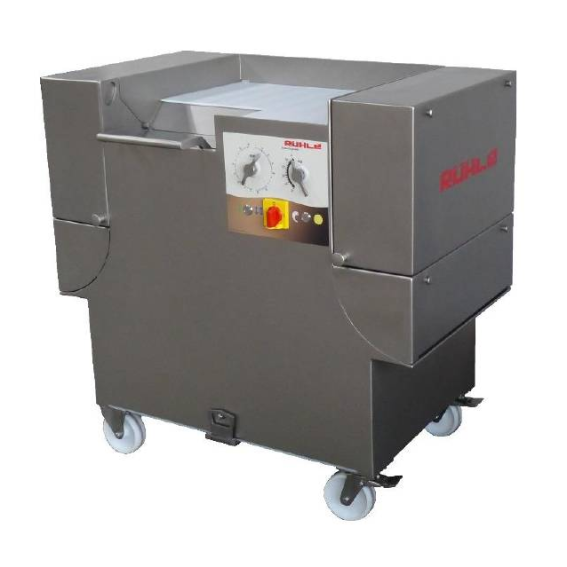

The high-precision Ruhle AR 10 Dicer and Slicer delivers exceptionally powerful, premium cutting performance across demanding meat rooms, commercial kitchens, and processing environments. As a semi-automatic automatic dicer and high-performance automatic slicer combination machine, this versatile model utilizes advanced German engineering to guarantee flawless results tailored to your exact product specifications. Whether deployed as a dedicated high-capacity cube machine or a streamlined commercial slicing machine, the Ruhle AR 10 dicer utilizes a specialized cross-sectional mechanism that minimizes product waste. Even odd-shaped primal segments or small ends are cut with absolute precision, delivering ultra-smooth surfaces and pristine end-product consistency.
| Technical Parameter | SR 1 Dicer | SR 1 Turbo Dicer | SR 2 Turbo Dicer | AR 10 Dicer |
|---|---|---|---|---|
| Machine Length | 900 mm | 1000 - 2100 mm | 1550 mm | 1070 - 1900 mm |
| Machine Width | 600 mm | 710 - 1400 mm | 900 - 1400 mm | 690 - 890 mm |
| Machine Height | 980 mm | 1110 mm | 1300 mm | 1040 mm |
| Equipment Weight | 280 kg | 325 kg | 850 kg | 245 kg |
| Connected Load | 1.5 kW / 16 A | 2.1 kW / 16 A | 3.5 kW / 16 A | 3.8 kW / 16 A |
| Shaft Dimension (W x H) | 100 x 100 mm | 100 x 100 mm | 120 x 120 mm | 100 x 100 mm |
| Shaft Total Length | 350 mm | 350 mm | 500 mm | 350 mm |
| Section Thickness Range | 1 - 32 mm | 1 - 32 mm | 0.5 - 32 mm | 0.5 - 60 mm |
| Slicing Speed Frequency | 80 cuts / min | 160 cuts / min | 160 / 320 cuts / min | 200 cuts / min |
| Operating Temperatures | -5°C to +80°C | -5°C to +80°C | -5°C to +80°C | -5°C to +80°C |
| Max Cutting Output | 900 kg max. | 1500 kg max. | 3000 kg max. | 1800 kg max. |
| Standard Grid Sizes | 1) 5, 10, 20, 50 mm 2) 6, 12, 24, 50 mm 3) 7, 15, 30, 50 mm |
1) 5, 10, 20, 50 mm 2) 6, 12, 24, 50 mm 3) 7, 15, 30, 50 mm |
1) 5, 10, 20, 40, 60 mm 2) 6, 12, 24, 60 mm 3) 7, 15, 30, 60 mm |
3, 5, 6, 8, 10, 12, 15, 16, 20, 24, 30, 50 mm |

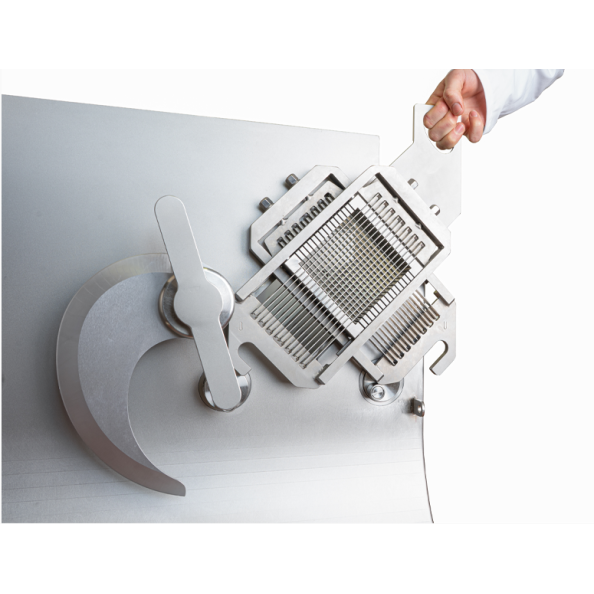

* Note: Distributed officially by CM Machine Services Ltd. The advanced AR 10 system is engineered with an extensive range of selectable grid options to perfectly accommodate specialized dicing, dicing strips, slicing, or shredding lines.
